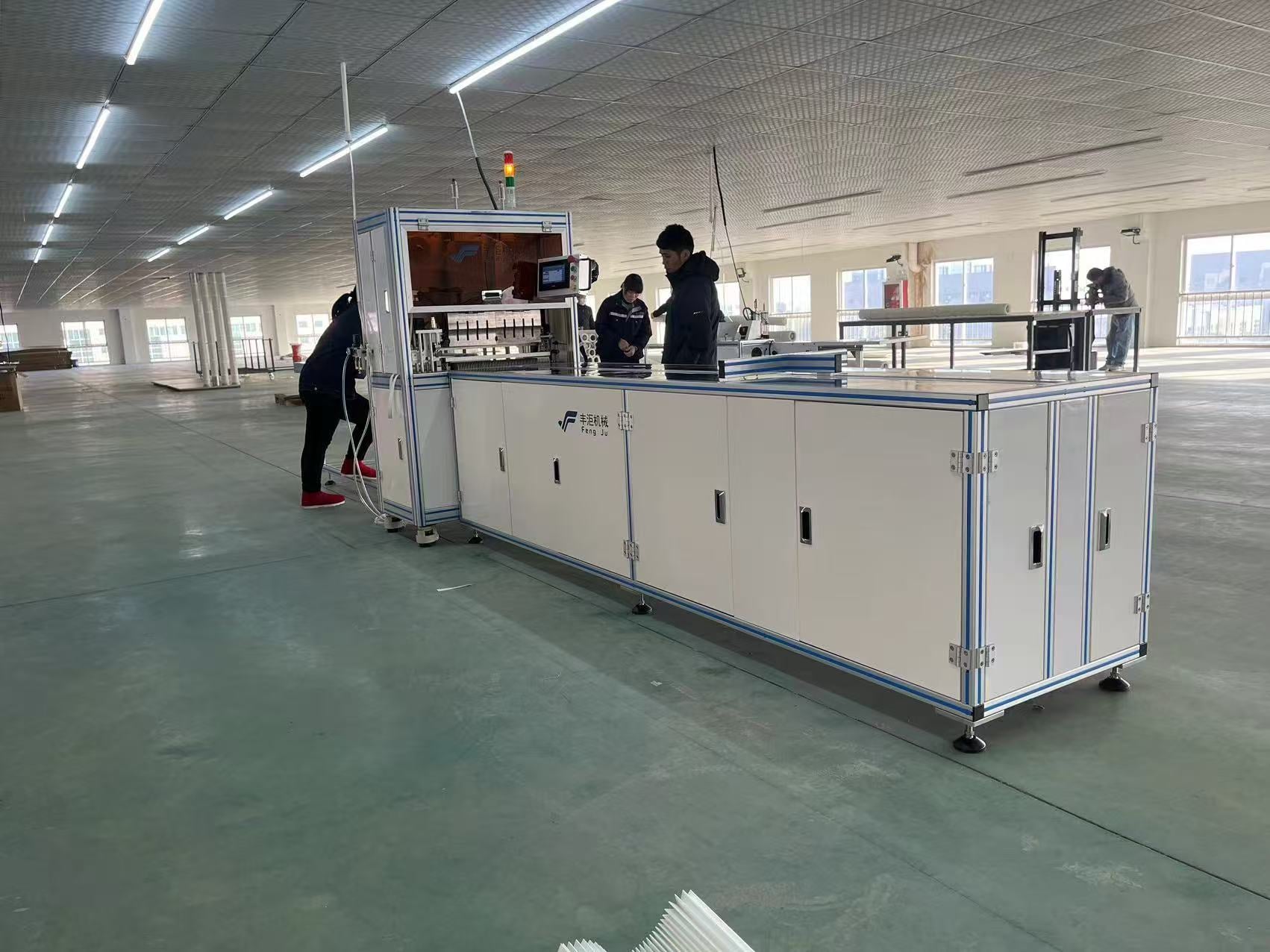

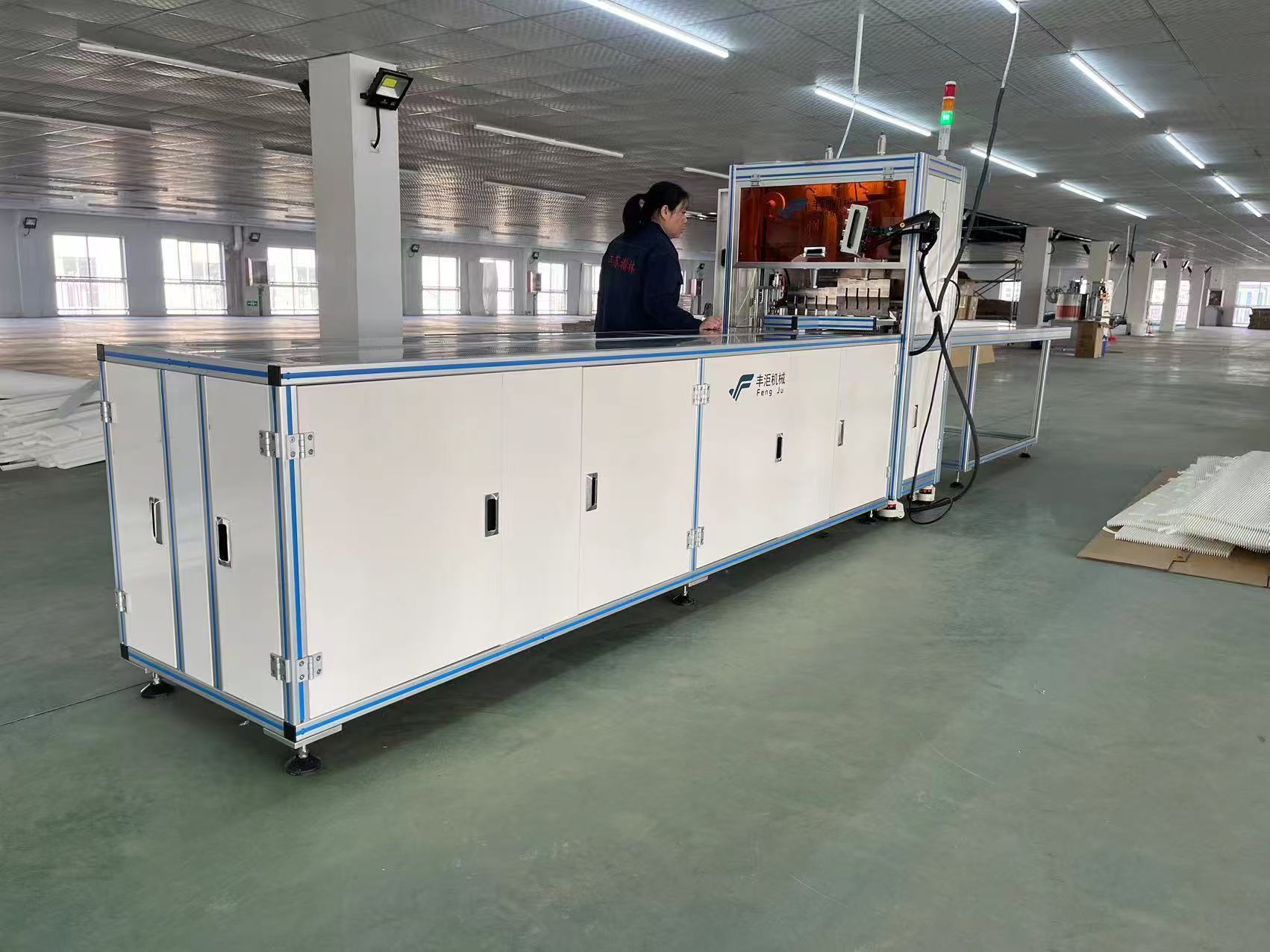

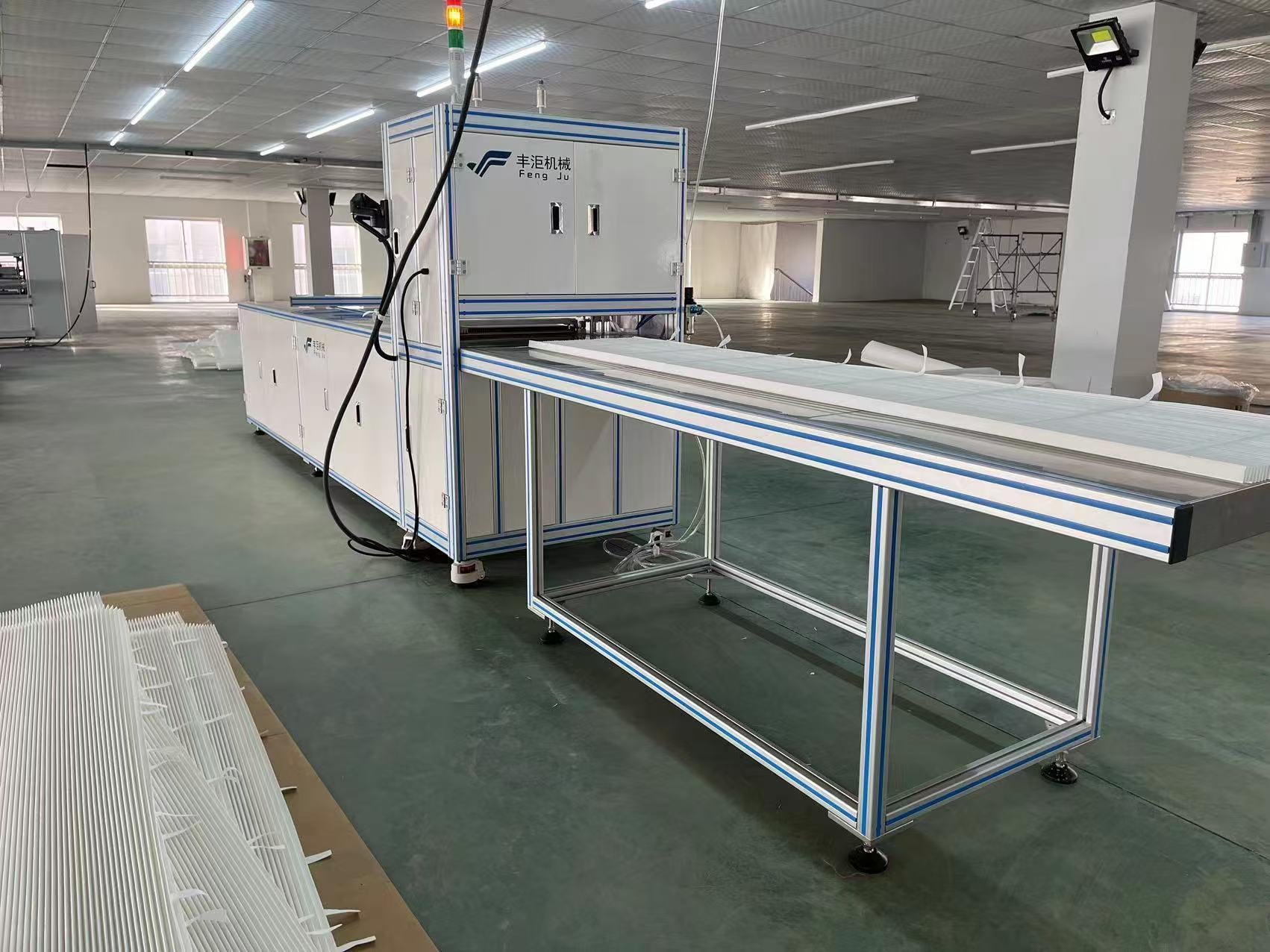

Band welding machine

Technical parameters 1. Output power: 4500W2. Working power supply: 220V + 5V, 50/60Hz3. Running speed: 1 - 30 times/minute (adjustable according to actual situation)4. Air source: 0.4 - 0.7 Mpa5. Effective welding width: 550cm6. Effectiv...

+86-15961101591

[email protected]

Description

Technical parameters

1. Output power: 4500W
2. Working power supply: 220V + 5V, 50/60Hz
3. Running speed: 1 - 30 times/minute (adjustable according to actual situation)
4. Air source: 0.4 - 0.7 Mpa
5. Effective welding width: 550cm
6. Effective welding depth: 1.6cm - 3cm
7. Tooth mold spacing: 0.9cm

Item	Specification
Output Power	4500W
Working Power Supply	220V ±5V, 50/60Hz
Operating Speed	1–30 cycles/min (Adjustable according to actual working conditions)
Machine Dimensions	6300mm (L) × 1000mm (W) × 1700mm (H)
Air Supply Pressure	0.4–0.7 MPa
Air Tube Diameter	8mm
Ultrasonic Frequency & Power	15KHz 2600W × 2 + 20KHz 2000W × 1
Effective Welding Width	550mm
Effective Welding Depth	16mm–30mm
Tooth Mold Spacing	9mm
Touch Screen Brand	XINJE
PLC Control System Brand	XINJE
