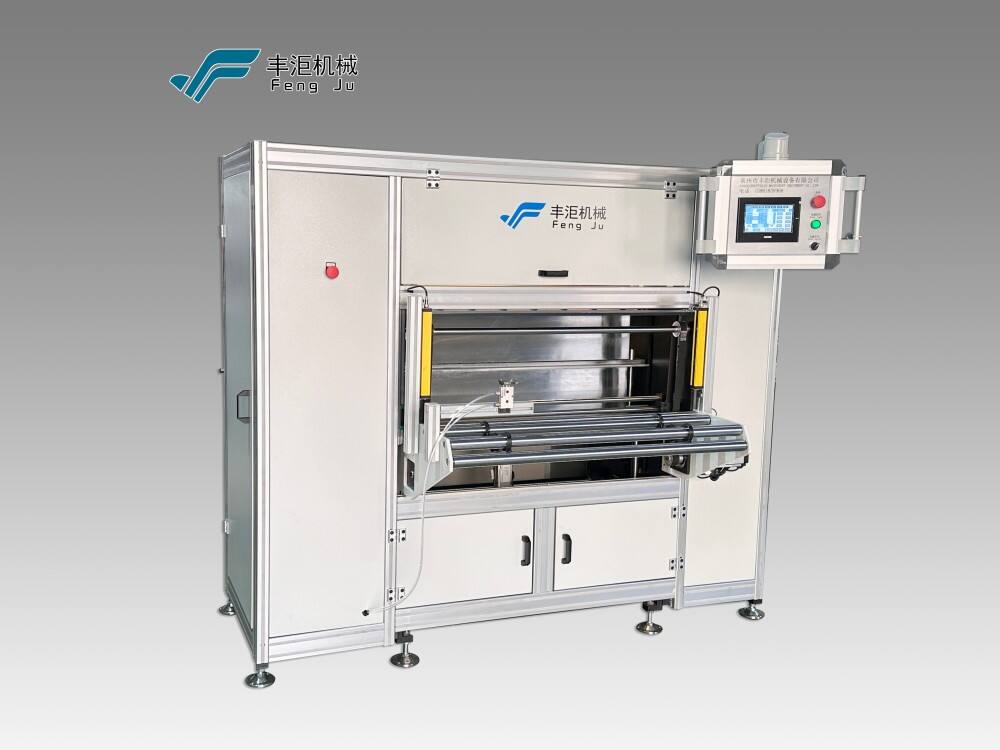

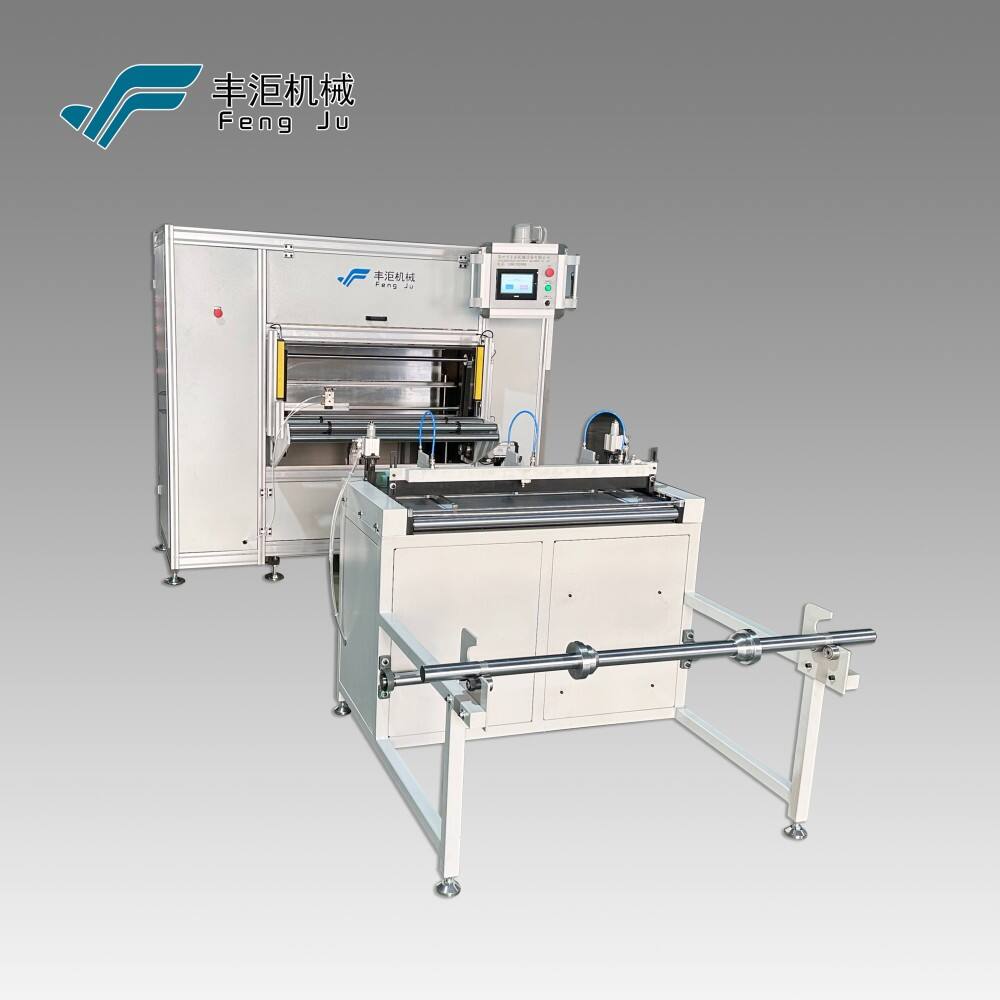

Active carbon fabric blade pleating machine

Product Description
Specially designed for activated carbon filters, this high-efficiency pleating machine features a military-grade steel body with enhanced structural stability through specialized heat treatment. Optimized for various activated carbon materials (including coconut shell, coal-based, and sintered carbon), it ensures uniform pleating without damage, significantly improving filtration efficiency.

Advantages

1. Gentle pleating technology minimizes carbon particle loss (breakage rate <0.8%)

2. Automatic pressure adjustment for different carbon densities

3. Optimized speed: 120 pleats/minute (activated carbon-specific)

4. Specially coated blades with 3x longer lifespan

Specifications

1. Available working width: 650mm, 850mm, 1050mm & customized.

2. Pleat height: 70mm-300mm adjusted on touchscreen

3. Speed: 14 folds/mi

4. Temperature: 160℃

5. Working voltage: AC380V or 220V

6. The upper/lower knife included angle adjustment through touchscreen

7. The distance between knife and heating plate is adjusted through touchscreen

8. The distance between upper knife and lower knife is adjusted through touchsceen

9. This machine is controlled by servo motors, touchscreen, PLC and temperature module to realize folding W/M and Sink type.

10. Application: gas filteration

11. Max. working width: 3500mm (customizable)

12. Pleat height range: 20-300mm

13. Pleating speed: 150 pleats/min

14. Temperature control: RT-200°C

15. Pre-heating feed table

16. Power supply: AC 380V/50Hz (3-phase)

17. Servo-controlled automatic pleat height adjustment

18. Blade gap adjustment via touchscreen

19. Heating plate gap adjustment via touchscreen

20. Blade opening angle adjustment via touchscreen

21. Pleat height adjustment via touchscreen

Working Principle

1. Intelligent material density detection with auto-parameter matching

2. Low-stress progressive pleating protects carbon structure

3. Simultaneous pleat setting and dust removal

4. Automatic stacking with centralized dust collection

Applications

1. Residential/automotive activated carbon air filters

2. Industrial waste gas treatment carbon cartridges

3. Water treatment carbon filters

4. VOC removal specialty carbon filters

Why Choose Us?

1. Video inspection before shipment

2. Fast customization: Pleat height/pattern solutions within 3 business days

3. Cost-effective: 40% lower than imported equipment, ROI ≤8 months

4. Lifetime support: Free commissioning training and technical consultation
