Round hole spiral coiling machine

Technical parameters

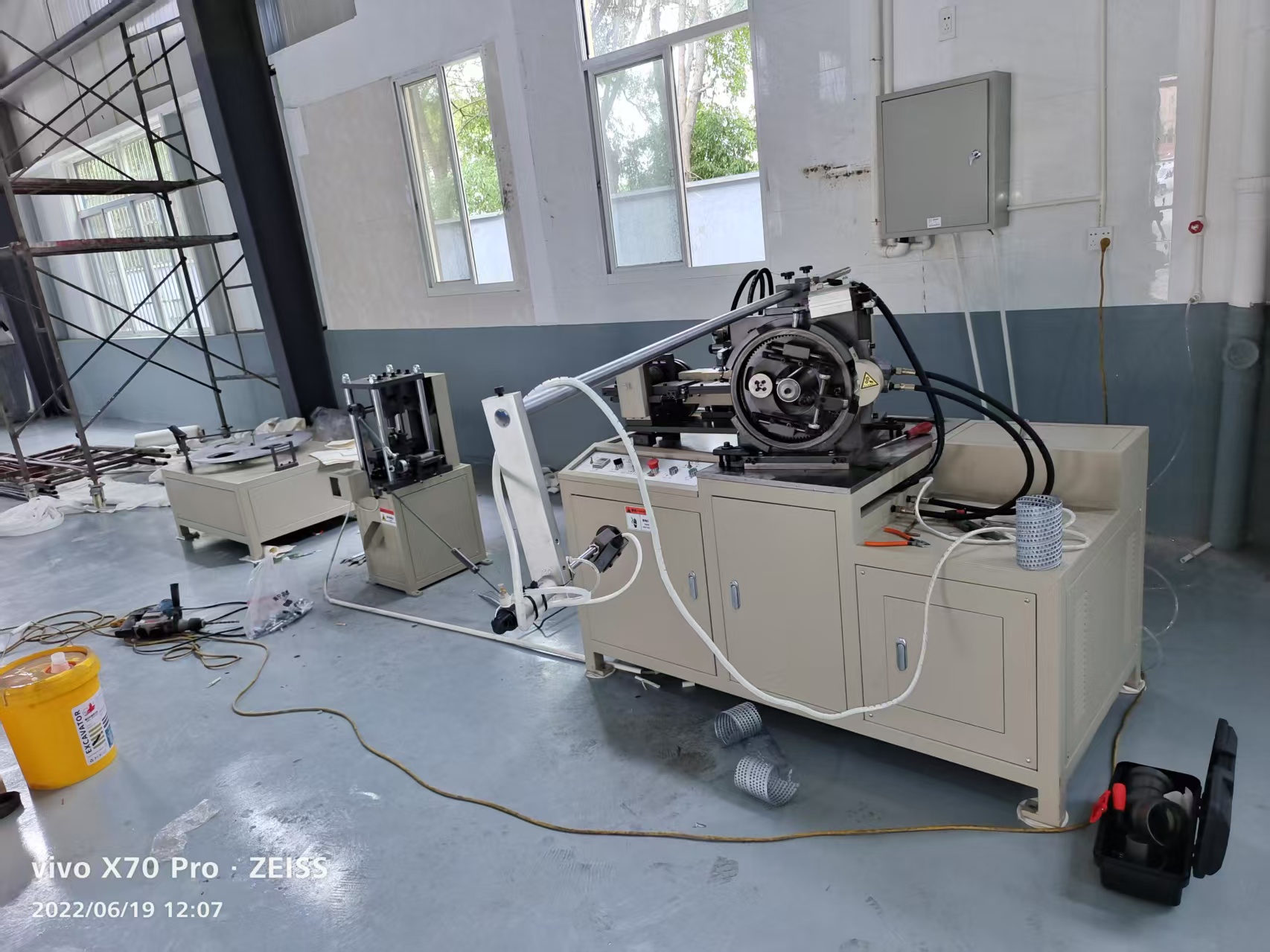

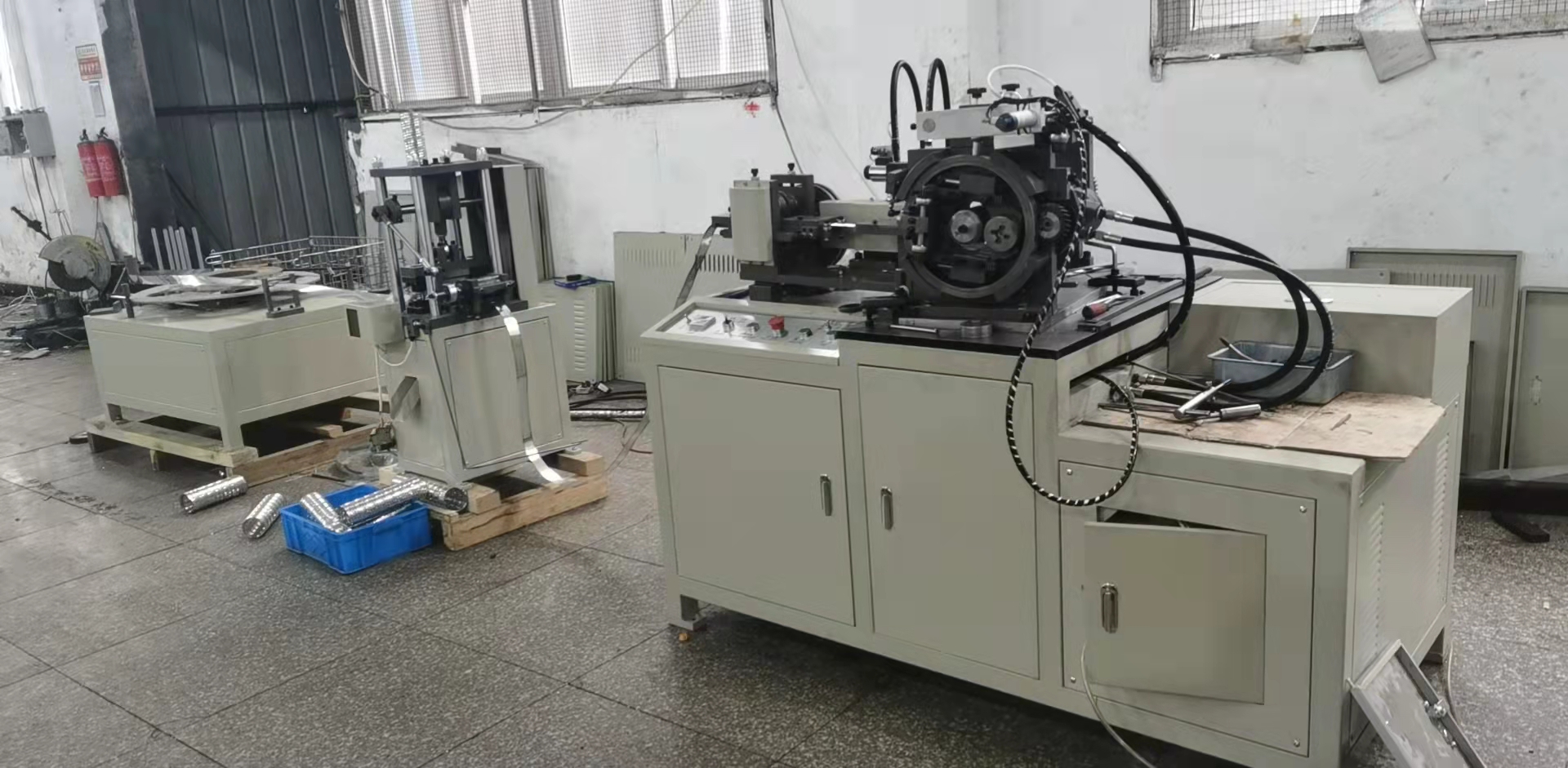

Components of the machine: This machine consists of three parts: unwinding, punching, and coiling

1. Plate thickness: 0.4 - 0.8 MM

2. Band width: 68 MM wide band

3. Diameter range: 40 MM - 135 MM. (The diameters of the 5 roll forming molds are: 65 MM, 78 MM, 87 MM, 90 MM, 95 MM respectively.)

4. Total motor power: 4 KW

5. Production speed: 2.2 meters per minute for a 87 MM diameter

6. Cutting method: Rotary cutting after stopping the material

7. Clamping method: Outer bevel, inner and outer flat

8. Applicable materials: Anti-fingerprint plate, heat-resistant zinc plate

9. Dimensions: 1700 * 1100 * 1500 MM (Length * Width * Height)

10. Adjusting the diameter size requires changing the molds

11. Punching diameter: 6 MM

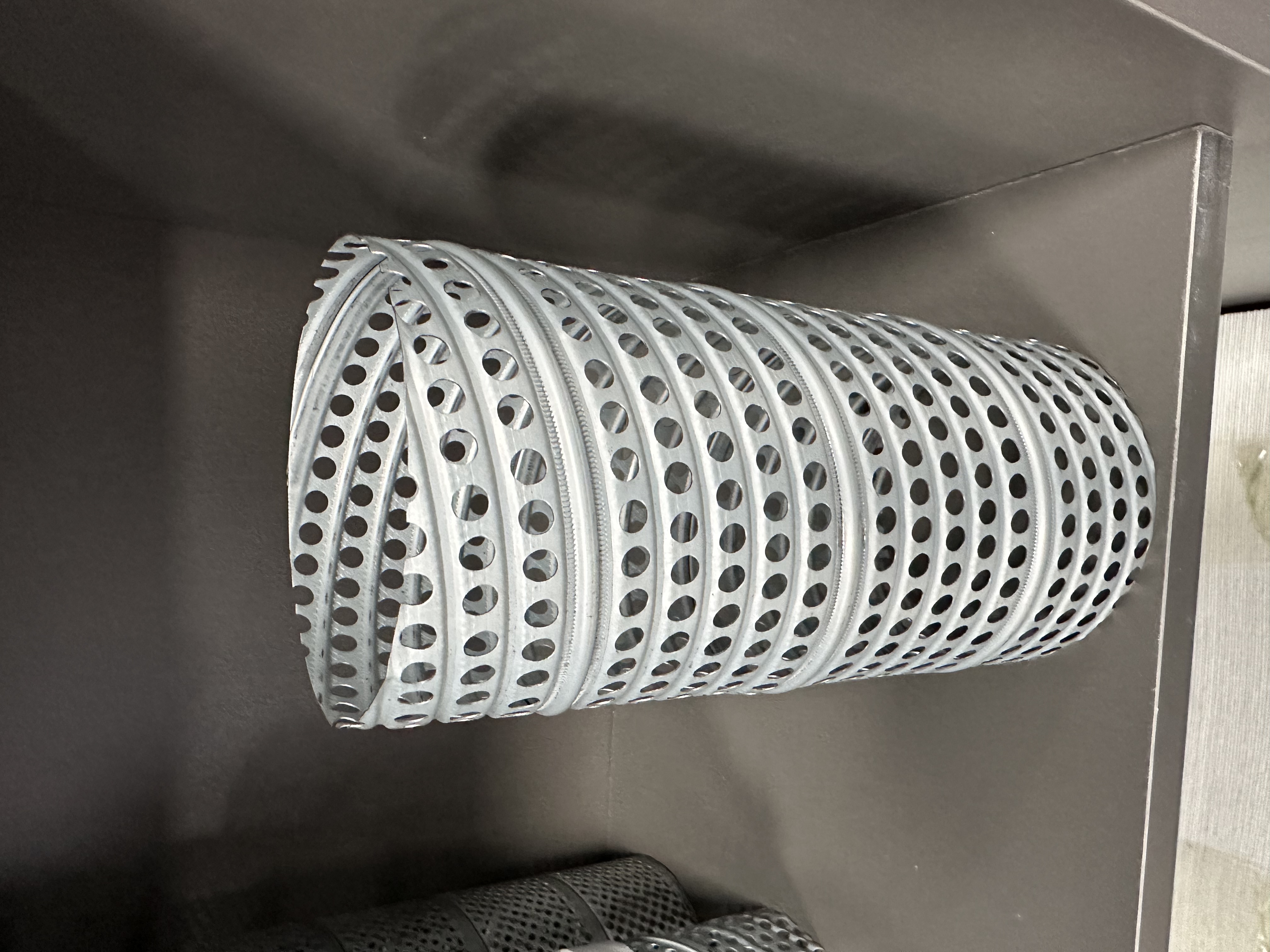

This machine is designed for rounding and forming inner and outer mesh screens of filter cartridges. The flat sheet material is first unwound and punched, then processed into cylindrical shapes through spiral coiling.

By setting the required diameter and length parameters, the machine can automatically coil the punched mesh into the desired filter mesh tubes and automatically cut them into individual cylindrical sections according to the preset length.
