AB End Cap Gluing Machine - Precision Dispensing Solution For Filter Manufacturing

Product Discription

Precision Gluing·Efficient Production·Intelligent Control

In the filter manufacturing industry, sealing quality directly impacts product performance and lifespan. Our AB end cap gluing machine incorporates advanced technology to revolutionize your production line. This fully automatic equipment perfectly combines PLC intelligent control with high-precision gear pump metering, ensuring AB glue ratio deviation within 3%, providing durable and reliable sealing for your filter products.

Key Advantages

1.Ultra-high Precision: German imported gear pump with ±3% accuracy

2.Smart Control: 10" industrial touchscreen + PLC control system

3.High Efficiency: Dynamic mixing + rotating dispensing increases speed by 40%

4.Easy Operation: Ergonomic foot pedal design, beginner-friendly

5.Durable Construction: All-steel frame, 350KG stable design for 24/7 operation

Specifications

1.Dispensing Range: 1-25g (continuously adjustable)

2.Control Mode: Time-based, freely programmable

3.Dispensing Accuracy: ≤3% deviation

4.Control System: Industrial PLC + 10" touchscreen

5.Operation: Foot pedal control

6.Metering System: High-precision gear pump

7.Mixing Technology: Dynamic mixing system

8.Material Capacity: Dual 60L temperature-controlled tanks

9.Power Supply: 220V/50Hz

10.Power Consumption: 3KW

11.Working Pressure: 0.6MPa

12.Machine Weight: 350KG (robust construction)

Working Principle

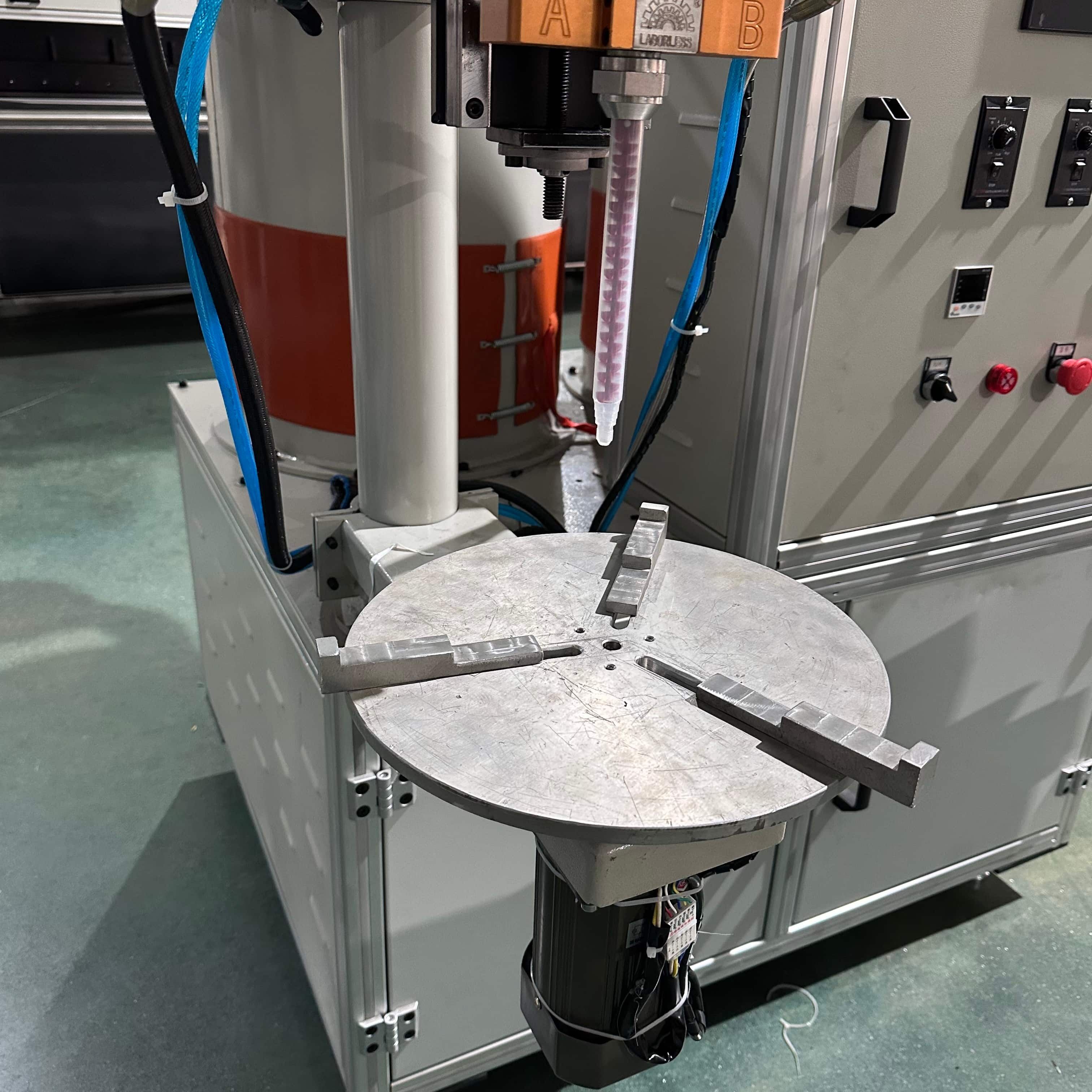

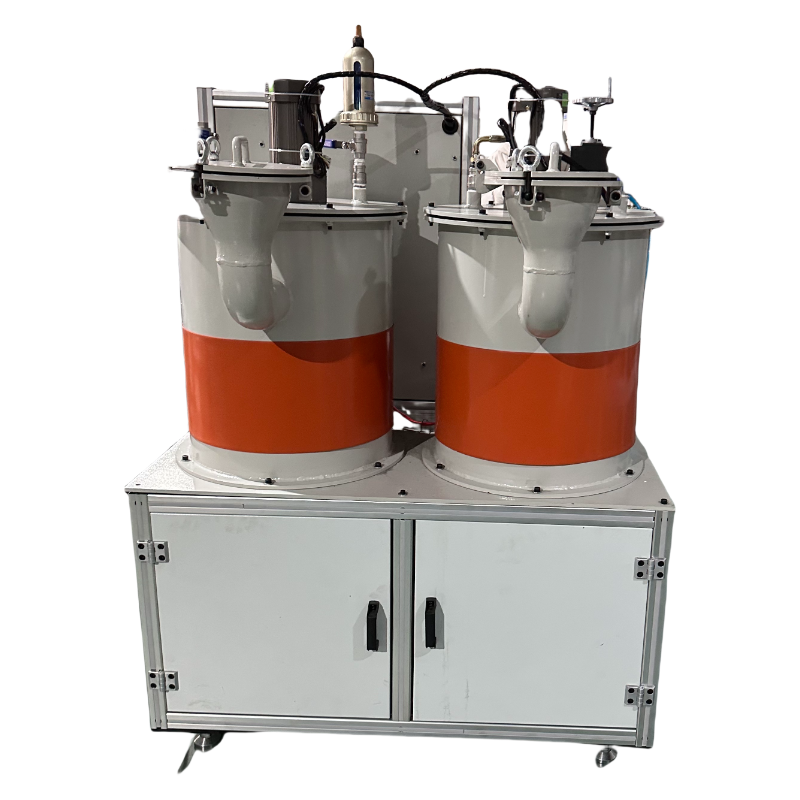

The machine features two separate tanks for A and B glue components. Electronically controlled gear pumps deliver both materials to the dynamic mixing head at preset ratios. The thoroughly mixed adhesive is precisely dispensed onto rotating filter end caps, where centrifugal force ensures even distribution for perfect sealing. The fully automated process guarantees consistent quality for every product.

Applications

1.Air filter manufacturing

2.Oil filter production

3.Fuel filter assembly

4.Industrial filter making

5.Water treatment filters

6.Special-purpose filters

Why Choose Our AB End Cap Gluing Machine?

1. Higher Yield Rate - Precise control ensures every product meets standards

2. Lower Production Cost - Automation reduces labor cost by over 30%

3. Increased Efficiency - 40% faster than conventional equipment

4. Extended Service Life - Military-grade materials, 10+ years lifespan

5. Comprehensive Support - Global 24/7 technical assistance
