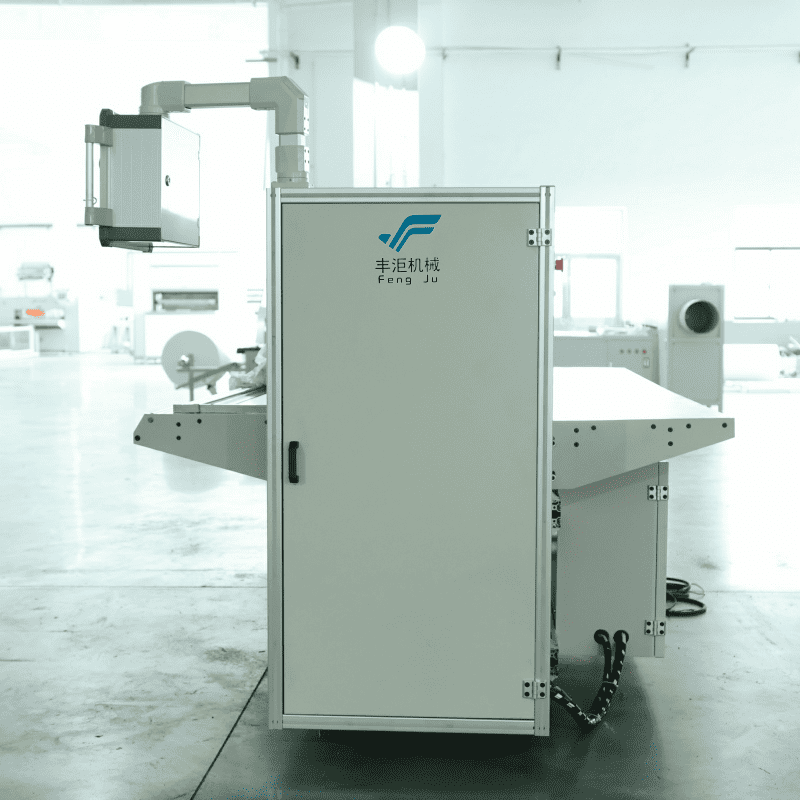

Baghouse filter blade pleating machine

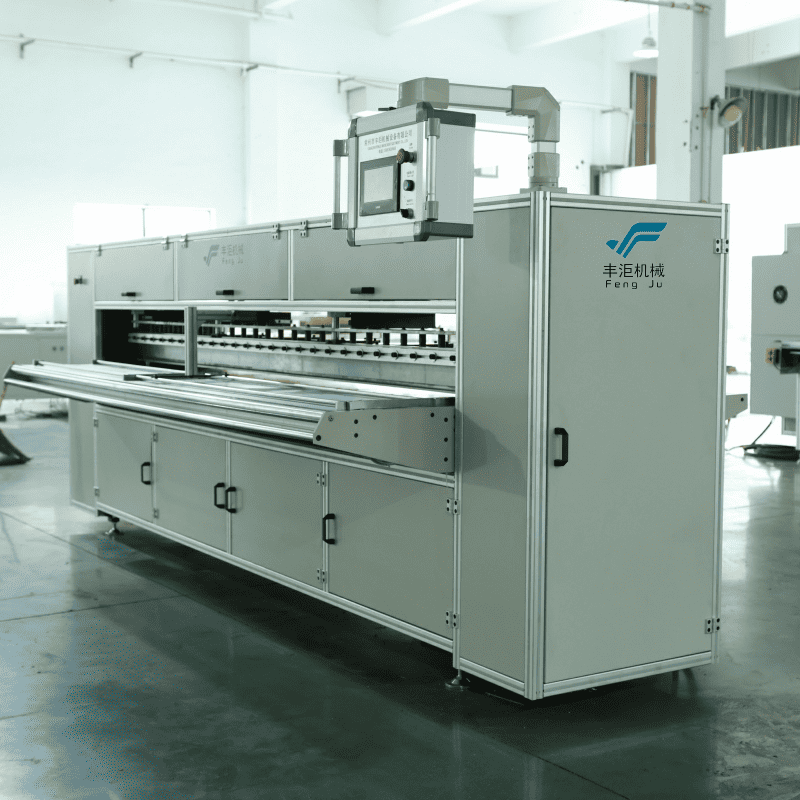

Product Discription

In industrial filtration systems, filter cartridges, as critical consumables, rely on the precision of their pleated structures to determine filtration efficiency and service life. Traditional pleating machines face technical bottlenecks like uneven pleat heights and unstable forming, while modern intelligent pleating equipment is reshaping industry standards through three technological breakthroughs:

1. Human-Machine Interaction Upgrade: Industrial-Grade Touch Control System

• HMI touchscreen enables visual parameter configuration.
• PLC control system integrates 20 sets of process parameter memory modules.
• Real-time monitoring of pressure/speed/displacement data with self-diagnostic fault detection.

2. Precision Forming Technology: Blade Dynamic Pleat Compression System

• Dual-blade synchronized pleating driven by servo motors.
• Pleat spacing accuracy ≤±0.05mm, boosting filtration efficiency per unit area by 18%.
• Compatible with Ø50–600mm diameters and materials like PTFE/composite membranes.

3. Flexible Production Configuration: Modular Design Philosophy

• CNC-milled monolithic base provides 40% higher rigidity than traditional welded structures.
• Quick mold-change system achieves specification transitions within 15 minutes.
• Supports custom non-standard designs (with 3D drawing verification services).

Application Scenarios

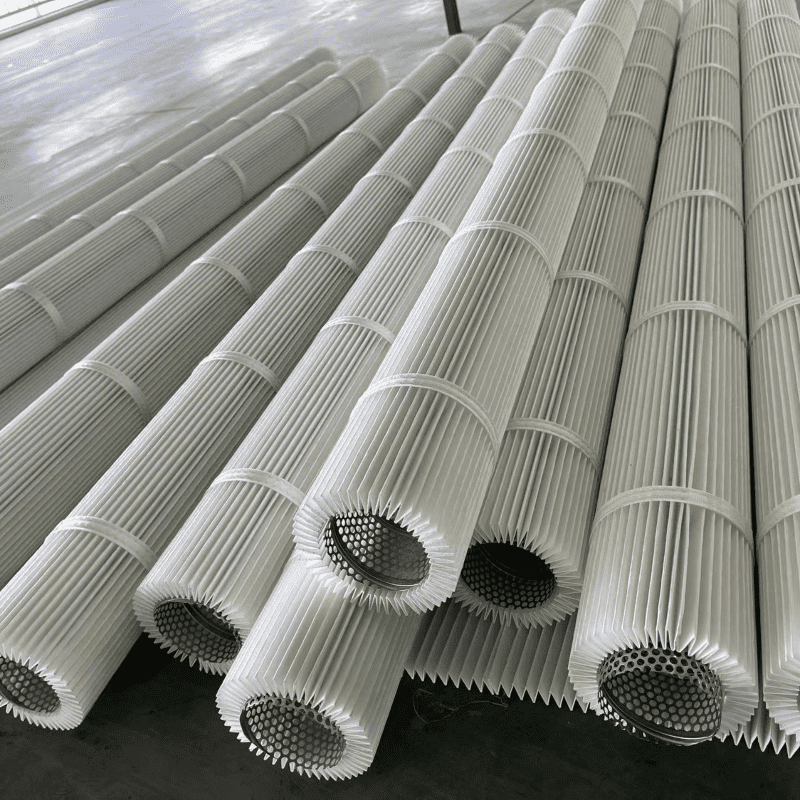

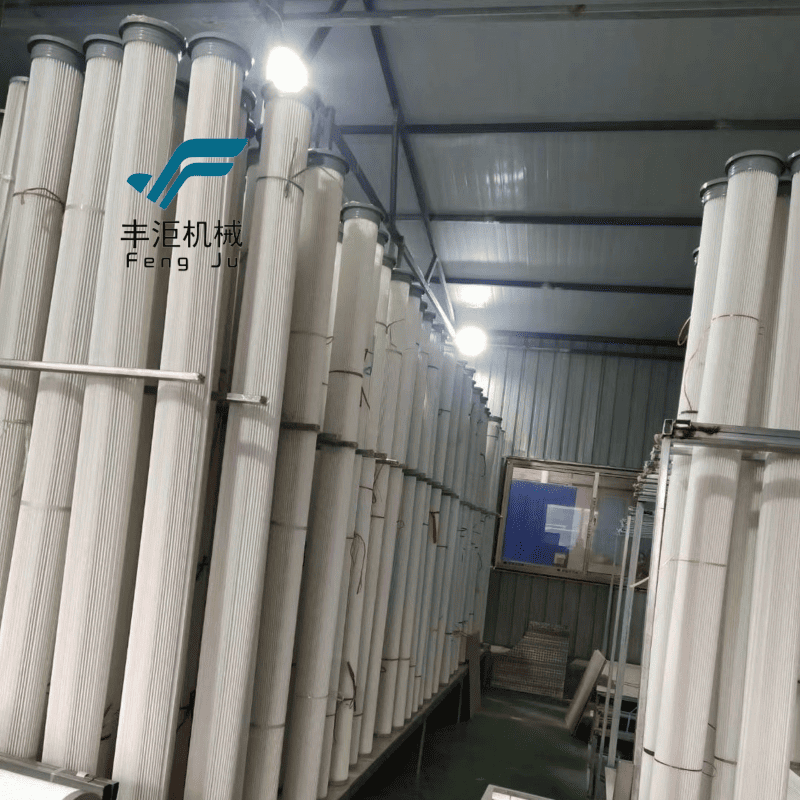

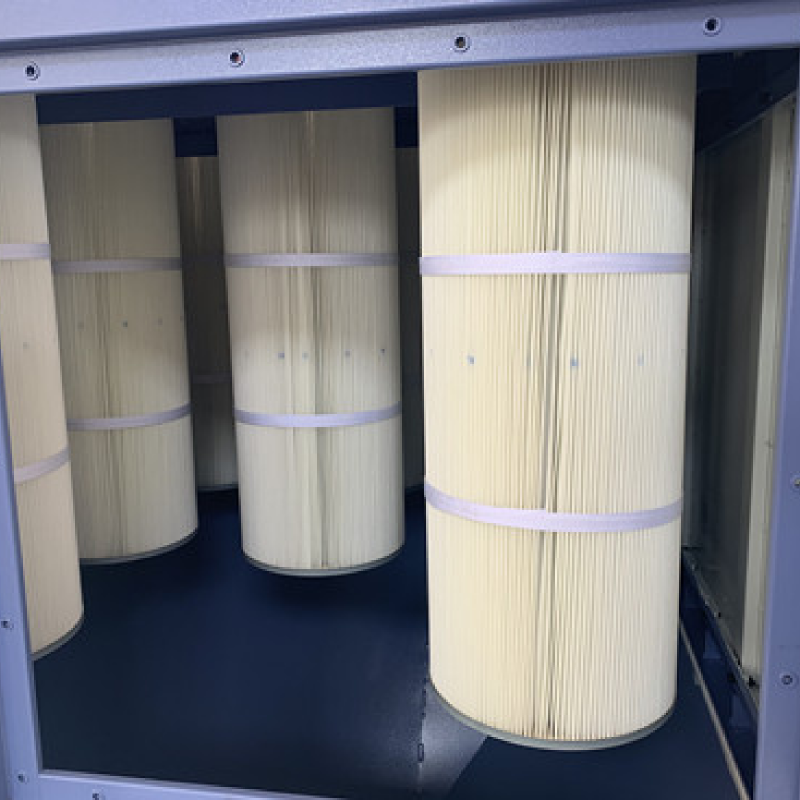

• Ultra-long filter cartridges: Breakthrough 2.5m length limit, extending to 3.7m to replace traditional filter bags.
• Special-shaped pleats: Diamond/wave patterns enhance dust adsorption efficiency.
• High-temperature material processing: Air-cooling system ensures quality in PTFE membrane thermoforming.

This intelligent pleating technology empowers precision manufacturing, enabling high-performance filtration solutions for harsh industrial environments.

Specifications

1. Maximum working width: 2000mm, 3000mm, 2400mm, 3200mm, 3500mm

2. Pleat height: 14-50mm

3. Speed: 70-120 folds/min

4. Temperature: 180℃

5. Working voltage: AC380V or 220V

6. The upper/lower knife included angle adjustment through touchscreen

7. The distance between knife and heating plate is adjusted through touchscreen

8. The distance between upper knife and lower knife is adjusted through touchsceen

9.This machine is controlled by servo motors, touchscreen, PLC and temperature module to realize folding W/M and Sink type.

10.Application: baghouse filteration
